THIELE Super Duty (TSD) TWN 0024

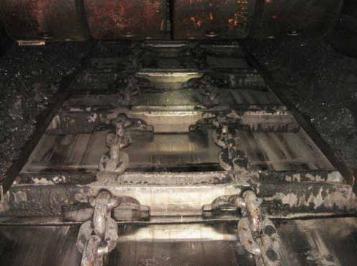

Like TRQ Chains, THIELE TSD Round Link Chains (THIELE Super Duty) were developed in order to achieve
the greatest possible wear resistance when used on chain scraper conveyors and a higher breaking force.
The material strength of the legs is deliberately reduced by precise heat treatment, which increases the crack
arrest capacity, in order to prevent cracking caused by the friction martensite as a result of chain speeds
of > 0.5 m/s. This makes TSD Chains ideally suited for use on stage loaders (BSL).
The extreme crown hardness of TSD Chains results in a very high wear resistance and a higher breaking force too.
The latter is however an unintentional side effect. As the increased hardness also means a reduction in toughness
and a greater sensitivity to stress corrosion cracking TSD Chains are not recommended for use on face conveyors
operating in a corrosive environment.
Chain Size
d x t [mm]
Article No. Test Force
kN
Elongation
under test force
% max.
Breaking Force
kN min.
Elongation at
fracture
%
Minimum
Defection
[mm]
22 x 86
F14009
530
1,6
750
16
18
24 x 86
F13454
630
1,6
900
16
19
26 x 92
F14005
740
1,6
1050
16
21
30 x 108
F14045
990
1,6
1.400
16
24
34 x 126
F14077
1.270
1,6
1.800
16
27
38 x 137
F14085
1.590
1,6
2.250
16
30
the above values apply to chains in ‘natural black’ condition (NSW)
Strength: Crown max. 450 HB10; Leg 342 – 371 HB10
For conversion HB10 to MPa see page 15
