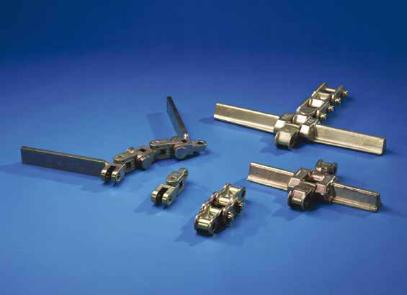

THIELE cardan chains
Cardan chains with universal joints are able to move in all directions and are designed for use with
high-speed conveyors (> 1 m/s) operating on tunnelling and roadheading machines.
THIELE cardan chains offer unbeatable ductility and wear resistance as a result of optimised heat
treatment and the use high-quality materials.
TYPE Chain
Description Flight Bar Art.-No. Ident-No. Pitch
p1
Pitch
p2
Module
m
Unit
Length Width
A
Universal joint Standard F91545 32-006-00 2 ⅝ “ 2 ⅝ “ 5 ¼“ 15 ¾“ 16,85“
Universal joint Standard F91631 32-009-00 2 ⅝ “ 2 ⅝ “ 5 ¼“ 15 ¾“ 23 ½“
Universal joint Standard F91948 32-009-03 2 ⅝ “ 2 ⅝ “ 5 ¼“ 15 ¾“ 27 ⅜“
Universal joint Standard F91751 32-014-00 2 ⅝ “ 2 ⅝ “ 5 ¼“ 21“ 23 ½“
Universal joint hardfaced F9163100 32-015-00 2 ⅝ “ 2 ⅝ “ 5 ¼“ 15 ¾“ 23“+2x5,5mm hf
Universal joint - Meter --- F91577 32-007-00 2 ⅝ “ 2 ⅝ “ 5 ¼“ 13 ⅛“ ---
B Twin Pitch Standard F91558 32-005-00 2 ⅝ “ 3“ 5 ⅝“ 16 ⅞“ 27 ¼“
C TC-Chain curve-going F91659 32-013-00 27/16 “ 2 13/16“ 5 ¼“ 15 ¾“ 27 ½“
D* Cardan Standard F91964 32-016-00 71 mm 71 mm 142 mm 284 mm 325 mm
Cardan Standard F91569 32-008-00 71 mm 71 mm 142 mm 284 mm 365 mm
* offered only with a permission of the patent owner
