THIELE
Chain Company
|
Drop Forging

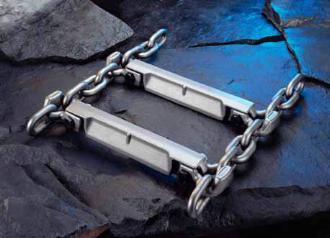

Outboard chain assemblies
Nominal
Size
Conveyor Art-No.
Chain Centre
Distance
CC
[mm]
Pict. Length
[mm]
a
[mm]
d
[mm]
f
[mm]
g
[mm]
h
[mm]
Weight
appr.
kg
14x50 ULF-350*
F24010
350
II
300 248 17 50 14,5 19,0 2,0
18x64/19x64,5
PFI-400*
F24050
400
I
340 290 20,5 63 19,0 21,5 4,5
18x64/19x64,5
PFI-500*
F24110
500
I
440 390 21,5 63 19,0 21,5 7,8
18x64/19x64,5
PFI-500 U F24115
500
II
440 384 21 58 16,0 25,0 7,6
18x64/19x64,5
PFI-650 U F24260
650
I
590 540 21,5 63 19,0 21,5 10,8
22x86 PFII-600*
F24211
600
I
548 450 25 80 23,0 26,5 13,8
22x86 PFII-500
F24130
500
I
450 350 25 80 23,0 26,5 11,1
24x86 FK PFII-480
F24207
480
II
420 324 25 70 24,0 37,0 8,6
24x86 PFII-600 SP301 F24208
600
II
507 444 25 87 24,0 37,0 13,7
24x86 PFII-446 SP301 F24209
446
II
353 290 25 87 24,0 37,0 9,7
24x86 PFII-600
F24210
600
I
542 444 26 77 25,0 26,0 13,4
26x92 SP245
F24203
420
III 305 238 28 90 30,0 55,0 9,3
26x92 PFIII-600* F24200
600
I
532 430 28 94 26,5 29,5 18,7
26x92 PFIII-900
F24201
900
I
832 730 28 94 26,5 29,5 30,0
30x108 SP326
F24205
550
III 400 320 31 92,5 31,5 60,5 13,5
THIELE outboard chain assemblies are available for the following chain sizes: 14x50, 18x64, 19x64,5,
22x86, 24x86, 26x92 and 30x108 mm. All fight bars are forged and sandblasted and feature drilled holes.
The tensile strength of the material after heat treatment is 270-320 HB (900-1100 MPa). Chain connectors
for outboard chain assemblies are manufactured according to DIN 22253 specifcations.
* to DIN 22257 specifcations all dimensions given exclude forging tolerances
Outboard fight bars
