THIELE
Chain Company
|
Drop Forging

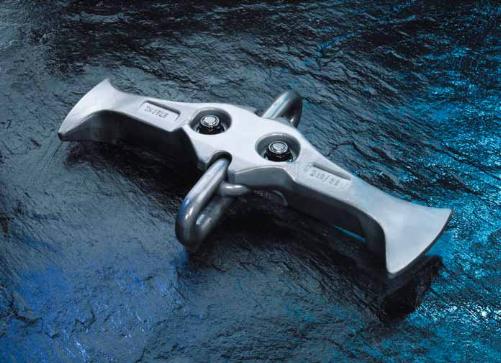

THIELE Single Stand Flight Bar
Nominal
Size
Designation Art-No.
complete
Art-No.
Top
Section
Art-No.
Bow
G-No.
length
[mm]
h
[mm]
c
[mm]
d
[mm]
a
[°]
ß
[°]
Weight
appr.
kg
26x92 EKF2-26 F243600 F24360 F25662 723/R0248 576 90 40 13,5 30 20 16,1
30x108 EKF3-30 F24516 F24515 F25720 704/231 676 96 39 16 30 20 22,1
34x126 EKF34/776 F24536 F245361 F25821 935/Z0831 776 105 47 13,5 30 20 31
34x126 EKF34/676 F24537 F245371 F25821 935/Z0876 676 105 47 13,5 30 20 27
THIELE Single Strand Flight Bars are designed for single-strand chain conveyors. The accurately forged
and calibrated chain recess ensures a smooth chain run and prevents the fight bar from wandering out of
the pan profle.
all dimensions given exclude forging tolerances
