| 33
Chain Company
|
Drop Forging
THIELE
Single Plane (SP) Connectors TWN 0141
Chain Size
d x t [mm]
Art.
No.
d
t
c
min.
e
max.
f
i
max.
m
max.
n
+2
Test
Force
kN
Break.
Force
kN min.
Bolt
Nut
Tight.
torque
Nm
Weight
kg
22 x 86 F25211 23,5
± 0,5
86
± 1,0
132 117 78 25 24 52 440 550 M24 850
3,3
26 x 92 F25341 28
± 1,0
92
± 1,2
146 128,5 85 28 26 58 580 725 M30 1700 4,4
30 x 108 F25401 31,5
± 1,1
108
± 1,4
172 147 98 32 31,5 65 725 905 M36 3000 6,4
34 x 126 F25421 36
± 1,0
126
± 1,2
198 163 110 35 36,5 70 910 1130 M36 3000 8,0
Chain Size
d x t [mm]
Article
No.
d
t
b
1
min.
b
2
max.
c
max.
f
max.
l
max.
r
+2
Test
Force
kN
Breaking
Force
kN min.
Weight
kg
22 x 86 F26100 22
± 0,7
86
± 0,9
24 84 55 53 132 34
456
608
1,5
26 x 92 F26130 26
± 0,8
92
± 0,9
28 96 65 62 146 40
637
850
2,8
30 x 108 F26140 30
± 0,9
108
± 1,1
32 109 75 72 170 46
848
1130
3,5
34 x 126 F26150 34
± 1,0
126
± 1,3
37 121 85 82 196 52 1090
1450
5,6
38 x 126 F26163 38
± 1,1
126
± 1,3
45 134 95 75 204 58 1360
1820
6,9
38 x 137 F26160 38
± 1,1
137
± 1,4
40 134 95 92 215 58 1360
1820
7,3
38 x 146 F26165 38
± 1,1
146
± 1,5
40 134 95 80 226 58 1360
1820
7,3
42 x 146* F26173 42
± 1,3
146
± 1,5
44 181 95 71 232 65 1660
2220
10,5

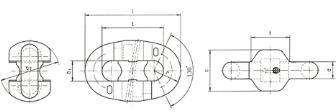

DMK-Connectors TWN 0133
The DMK-Connector has been
specially developed as a connecting
link for twin inboard chains.
The Single Plane Connector is only suitable for horizontal
applications.
The mechanical properties are at least the equivalent of
DIN 22258 Part 2.
* this connector is not as shown in the diagram – locking bolt system – separate drawing available on request the above values apply to connectors in ‘natural black’ condition (NSW)
the following values apply to connectors in ‘natural black’ condition (NSW)
