THIELE
Chain Company
|
Drop Forging
Chain Size
d x t [mm]
Article
No.
d
t
b
1
min.
b
2
max.
c
max.
f
max.
l
max.
r
+2
Test
Force
kN
Breaking
Force
kN min.
Weight
kg
30 x 108 F26061 30
± 0,9
108
± 1,1
32 109 36 72 170 46
850
1.020
2,6
34 x 126 F26071 34
± 1,0
126
± 1,3
36 121 41 82 198 52 1.080
1.290
4,2
38 x 137 F26081 38
± 1,1
137
± 1,4
41 134 46 91 215 59 1.360
1.610
5,7

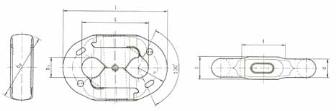

Flat Type Connectors TWN 0142
The TKF connector has been developed for both vertical and
horizontal applications.
The mechanical properties are at least the equivalent of DIN
22258 Part 1. Surface: galvanised
Chain Size
d x t [mm]
Article
No.
d
t
b
1
min.
b
2
max.
c
max.
f
max.
l
max.
r
+2
Test
Force
kN
Breaking
Force
kN min.
Weight
kg
26 x 92 F 26220 26
± 0,8
92
± 0,9
28 96 33 62 147 40
637
754
1,8

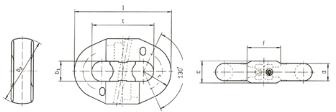

The Flat Type Connector was specially developed for vertical
and horizontal applications.
The mechanical properties are at least the equivalent of
DIN 22258 Part 1.
TKF-Connectors TWN 0145
the above values apply to connectors in ‘natural black’ condition (NSW)
the above values apply to connectors in ‘natural black’ condition (NSW)
