THIELE
Chain Company
|
Drop Forging

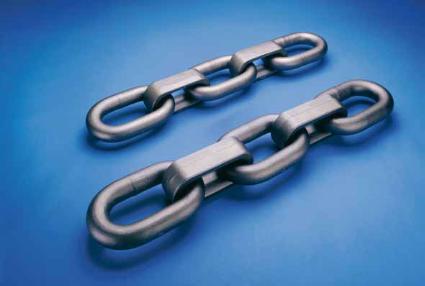

BROADBAND Low Profle Chain
Chain Size
d x t [mm]
Article No. Test Force
kN
Elongation
under test force
% max.
Breaking Force
kN min.
Elongation at
fracture
%
Minimum
Defection
[mm]
38x126/148 F13977
1.360
1,4
1.820
11
38
42x128/164 F13981
1.660
1,4
2.220
11
42
50x146/174 F13992
2.260
1,4
3.015
11
50
56x168/204 F13998
3.000
1,4
3.940
11
56
Mechanical Properties
(THD)
the above values apply to chains in ‘natural black’ condition (NSW)
The system uses THIELE BLOCKMASTER
®
-CP connectors.
These are shown on page 36.
„BROADBAND low profle chain“ is a trademark of Joy Mining Machinery part of Joy Global Inc.
Chain Size
d x t [mm]
Article No. Test Force
kN
Elongation
under test force
% max.
Breaking Force
kN min.
Elongation at
fracture
%
Minimum
Defection
[mm]
38x126/148 F13977TIP
1.420
1,4
1.895
11
38
42x128/164 F13981TIP
1.740
1,4
2.320
11
42
50x146/174 F13992TIP
2.360
1,4
3.140
11
50
56x168/204 F13998TIP
3.120
1,4
4.110
11
56
the above values apply to chains in ‘natural black’ condition (NSW)
Mechanical Properties
(TIP)
