THIELE
THIELE Improved Perfomance (TIP)
THIELE TIP Round Link Chains have been developed for use on high-performance coal faces. By employing
special alloyed steel the main operating parameters of these mining chains have been significantly impro-
ved without any loss in impact strength and deformability.
As the use of additional alloy constituents means higher material costs the added benefits of TIP Chains
only begin to be felt on high-performance faces where the extra expenditure is soon offset by the higher
face output and the higher working capabilities of the chains.
Chain Size
d x t [mm]
Article No. Test Force
kN
Elongation
under test force
% max.
Breaking Force
kN min.
Elongation at
fracture
%
Minimum
Defection
[mm]
26 x 92
F13513TIP
670
1,6
890
16
26
30 x 108
F13653TIP
890
1,6
1.190
16
30
34 x 126
F13813TIP
1.145
1,6
1.525
16
34
38 x 137
F13877TIP
1.430
1,6
1.910
16
38
Strength: 355 - 383 HB10
For conversion HB10 to MPa see page 15
the above values apply to chains in ‘natural black’ condition (NSW)

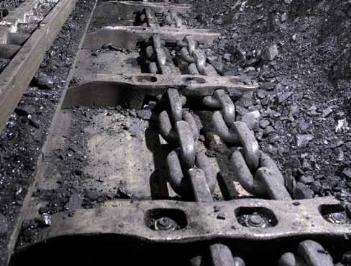

Picture: DBT
