THIELE
Chain Company
|
Drop Forging
Weights and Dimensions
(THD; TSC; TSD; TRQ; TIP; TZN)
Chain Size
d x t [mm]
Diameter
d
Pitch
t
Inside Width
b
1
min.
Outside Width
b
2
max.
Length at n
5 x t
Weight
[kg/m]
14 x 50
14
± 0,4
50
± 0,5
17
48
250
± 1,0
4,0
18 x 64
18
± 0,5
64
± 0,6
21
60
320
± 1,0
6,6
19 x 64,5
19
± 0,6
64,5
± 0,6
22
63
322,5
± 1,0
7,6
22 x 86
22
± 0,7
86
± 0,9
26
73
430
± 1,0
9,5
24 x 86
24
± 0,7
86
± 0,9
28
79
430
± 1,0
11,6
24 x 87,5
24
± 0,7
87,5
± 0,9
28
79
437,5
± 1,0
11,5
26 x 92
26
± 0,8
92
± 0,9
30
85
460
± 1,0
13,7
30 x 108
30
± 0,9
108
± 1,1
34
97
540
± 1,2
18,0
34 x 126
34
± 1,0
126
± 1,3
38
109
630
± 1,3
22,7
38 x 137
38
± 1,1
137
± 1,4
42
121
685
± 1,4
29,0
42 x 137
42
± 1,1
137
± 1,4
48
139
685
± 1,4
37,3

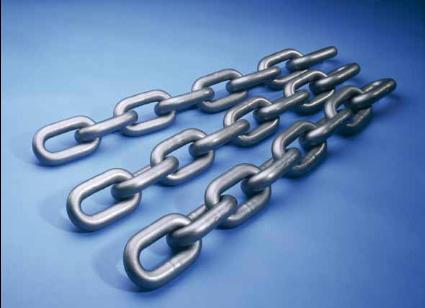

THIELE Round Link Chains
