Chain Company
|
Drop Forging
THIELE
THIELE BLOCKMASTER
®
TWN 0147

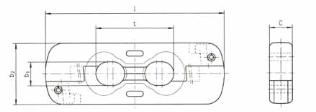

Chain Size
d x t [mm]
Article
No.
d
t b
1
b
2
l c Breaking
Force
kN min.
Weight
kg
Roll Pins
Article No.
34 x 126
F26320 34 126 37 98 279 35,5
1600
5,9
Z07862 / Z07863
38 x 137
F26335 38 137 41 109 308 39,5
2000
8,0
Z07451 / Z07053
38 x 146
F26330 38 146 41 109 335 39,5
2000
8,7
Z07451 / Z07053
42 x 146
F26341 42 146 44 114 330 43,0
2500
9,8
F263411
48 x 144/160 F26350 48 144 50 121 353 58,0
3100
14,7
Z00302 / Z00303
48 x 152
F26360 48 152 50 124 334 51,5
2900
12,4
Z07029 / Z00299
The THIELE BLOCKMASTER® has been specially developed as a vertical connecting link for Flat Type
Chains. Its mechanical properties are much higher than those specifed in DIN 22258 Part 3.
1. Separate the two symmetrical connector halves
4. Drive in the roll pins
3. Position connector halves over each other and push together
2. Lay chain ends into one connector half
All dimensions given exclude forging tolerances; the above values apply to connectors in ‘natural black’ condition (NSW) Surface: galvanised
Assembly Instructions
