THIELE
Chain Company
|
Drop Forging
* Module over two links

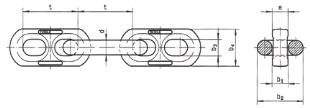

Weights and Dimensions
(THD; TSC; TSD; TRQ; TIP; TZN)
Chain Size
d x t [mm]
Diameter
d
Pitch
t
Thick-
ness
e max.
Inside Width
Round Link
b
1
min.
Outside Width
Round Link
b
2
max.
Inside Width
Flat Link
b
3
min.
Outside Width
Flat Link
b
4
max.
Weight
[kg/m]
34 x 126 34
± 1,0
126
± 1,3
37
38
111
38
85
23,5
38 x 126 38
± 1,1
126
± 1,3
41
42
121
42
100
29,8
42 x 146 42
± 1,1
146
± 1,5
47,1
48
135
46
109
37,6
48 x 144/160 48
± 1,5
304*
± 1,6
57,1
62
163
52
115
50,5
48 x 152 48
± 1,5
152
± 1,5
57,2
62
163
52
115
48,0
52 x 170 52
± 1,6
170
± 1,7
59
61
173
57
125
55,0
56 x 187 56
± 1,7
187
± 1,9
63
69
188
61
132
63,8
60 x 189 60
± 1,9
189
± 1,9
70
72
199
66
141
72,6

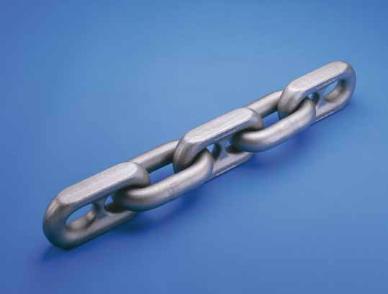

THIELE Super Flat Type Chains
Super Flat Type Chains are mining chains for chain scraper conveyors that are a nominal size fatter than the
standard Flat Type Chains. The advantage of the S-Flat design is that because the chain assembly is centrally
embedded in the fight bar the S-Flat Chain offers greater clearance in the pan profles thus reducing wear
grooves in the bottom plate.
Super Flat Type Chains also allow the existing conveyor to be upgraded from a Flat Type Chain to the next Super Flat
Type Chain size.
